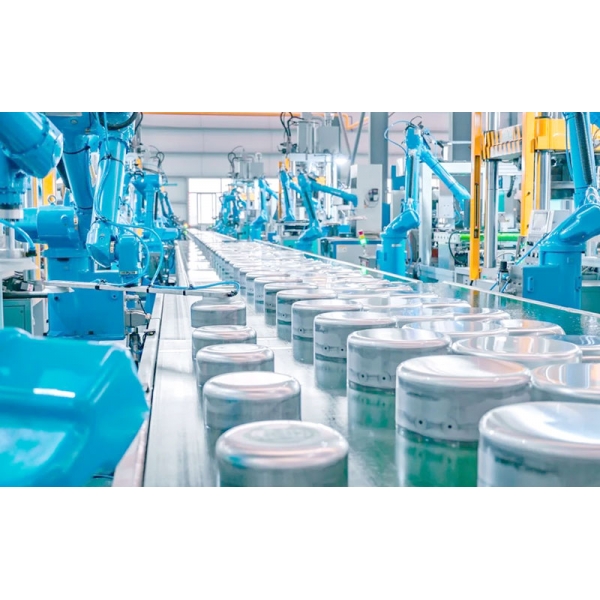

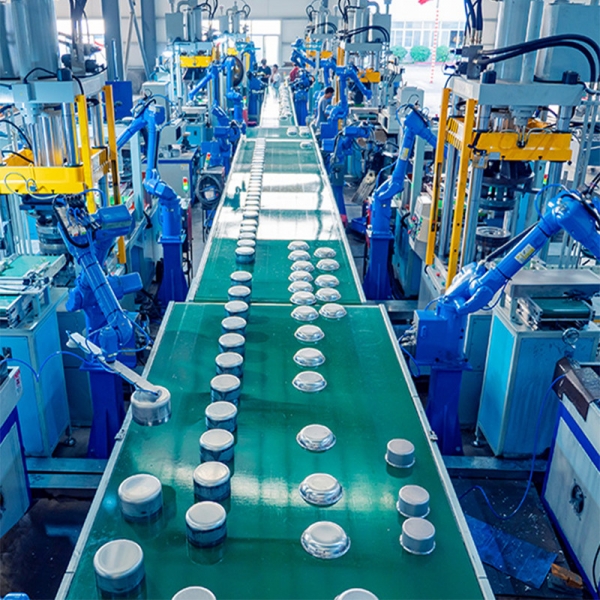

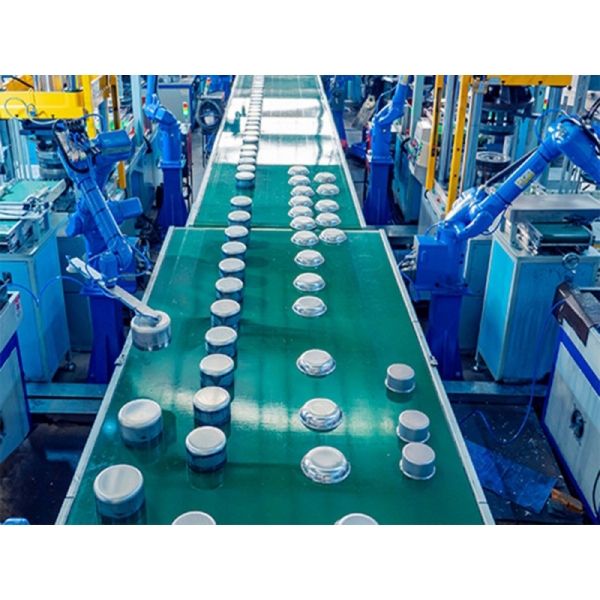

Stainless steel pot production line

Detail

Stainless steel pot drawing and stamping production line process and introduction

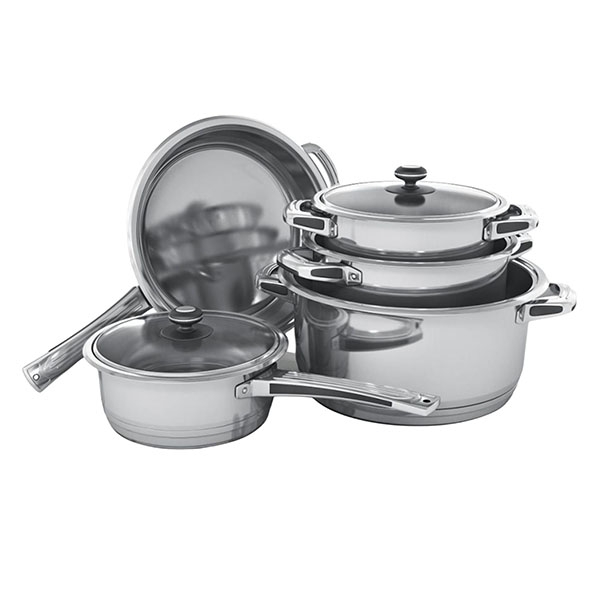

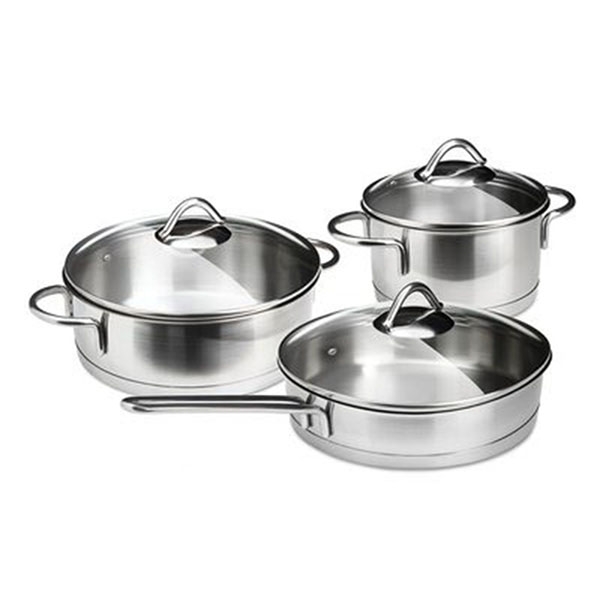

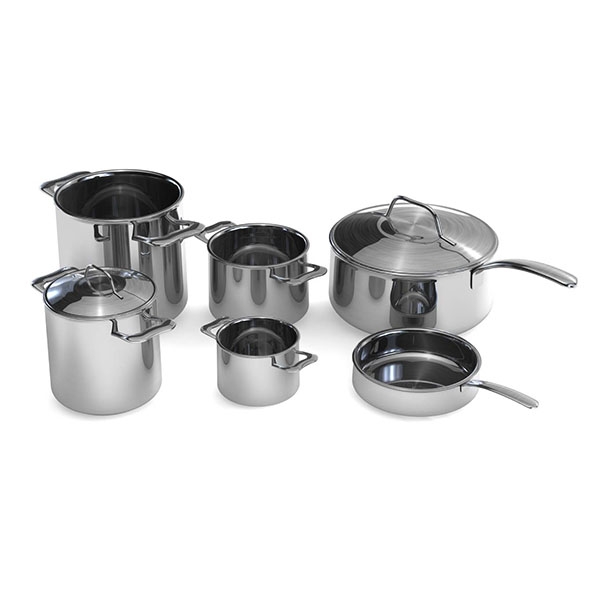

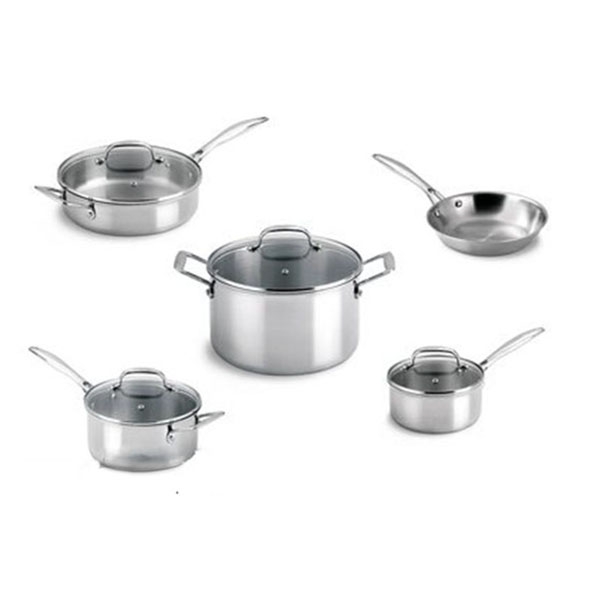

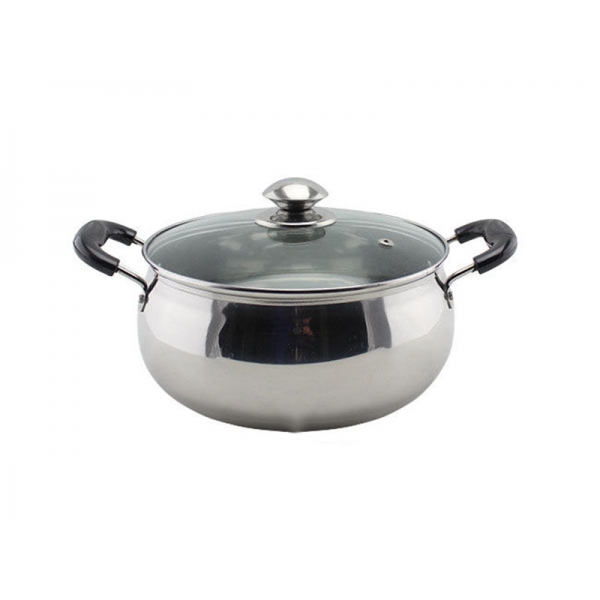

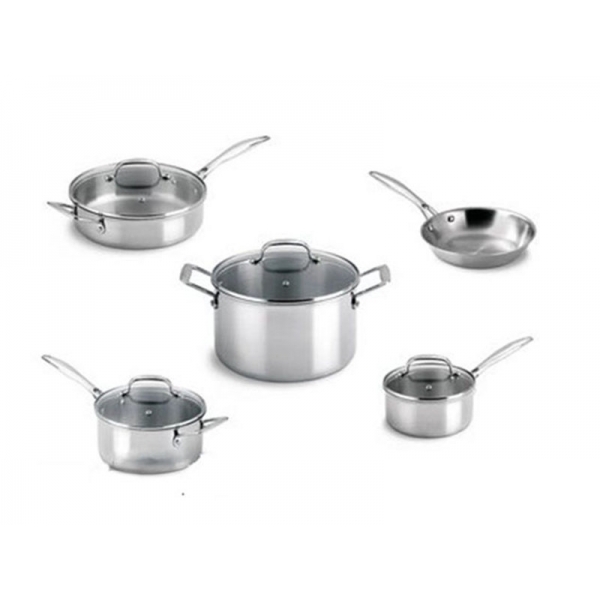

1: The production line is suitable for products: This fully automatic production line is suitable for the automated production of various types of stainless steel soup pots, woks, milk pots, frying pans and other pot bodies and lids.
2: Trial material: stainless steel or aluminum alloy
3: Working cycle: 8 hours or 12 hours of continuous production recommended
4: Production accounting table:

Product diameter	Product height	Pot output		Pot lid output in 8 hours
100-200mm	50-100mm	10-8 pieces/min	>2000pieces/8 hours	>3800 pieces/8 hours
200-300mm	100-150mm	8-6 pieces/min	>3800pieces/8 hours	>3800pieces/8 hours
300-400mm	150-200mm	6-5 pieces/min	>2000pieces/8 hours	>3800pieces/8 hours
400-500mm	200-300mm	5-4 pieces/min	>1500pieces/8 hours	>3800pieces/8 hours

5: Production process:

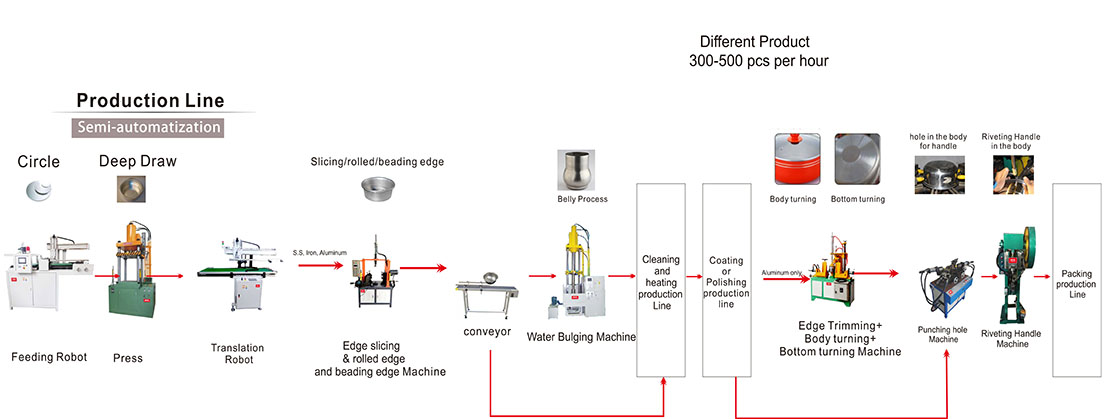

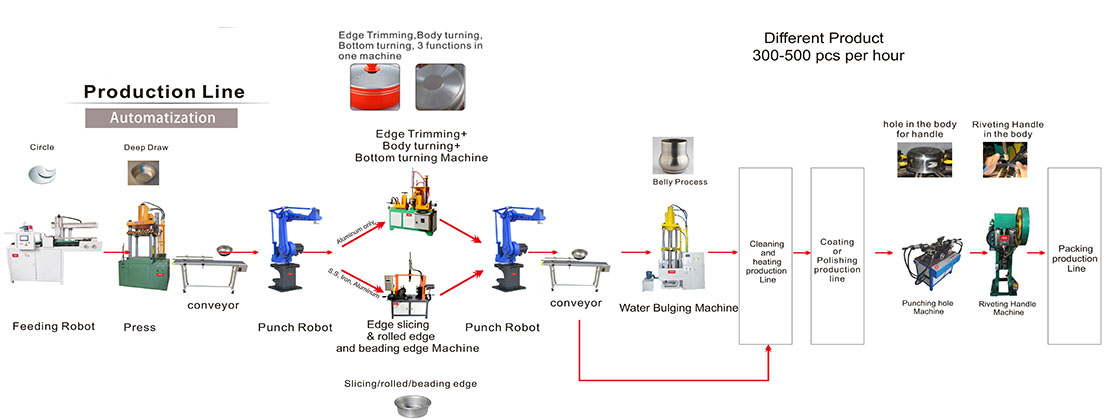

Cutting the wafer--stretching--trimming--curling--watermark--complete
6: Equipment combination and budget:
Automatic wafer feeder + stretching hydraulic press + trimming punch + crimping machine + watermark stamping machine + 3 robots = $80,000

Stainless steel pot continuous stretching production line process and introduction

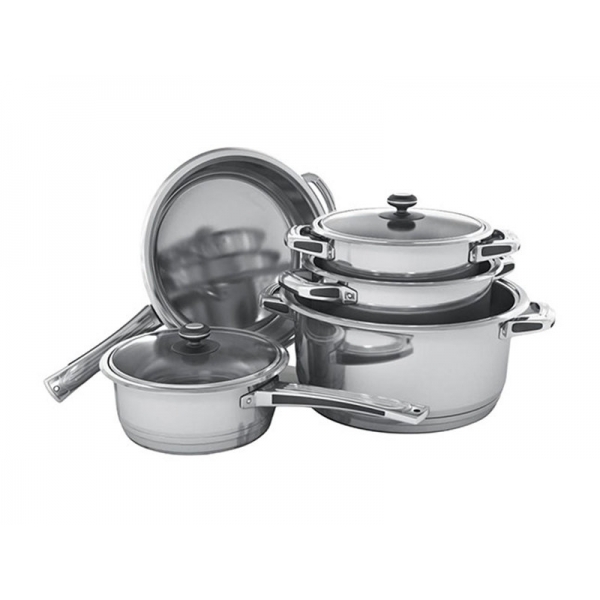

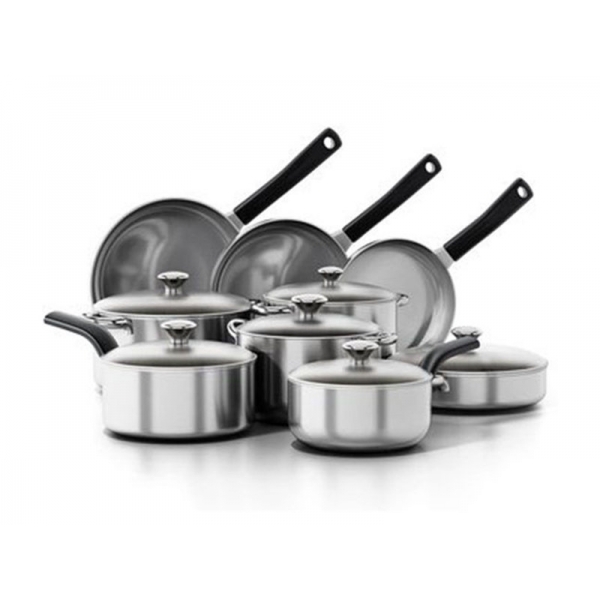

1: Suitable products for the production line: This fully automatic production line is suitable for automatic stretching of various types of stainless steel soup pots, woks, milk pots, frying pans, etc.
2: Trial material: stainless steel or aluminum alloy
3: Working cycle: 8 hours or 12 hours of continuous production recommended
4: Production accounting table:

Product diameter	Product height	Pot output		Pot lid output in 8 hours
100-200mm	50-100mm	10-8 pieces/min	>2000pcs/8 hours	>3800pcs/8 hours
200-300mm	100-150mm	8-6 pieces/min	>3800pcs/8 hours	>3800pcs/8 hours
300-400mm	150-200mm	6-5 pieces/min	>2000pcs/8 hours	>3800pcs/8 hours
400-500mm	200-300mm	5-4 pieces/min	>1500pcs/8 hours	>3800pcs/8 hours

5: Production process:
Wafer feeding - one stretch forming - two stretch molding - three stretch molding - four stretch molding - five stretch molding - completed
6: Equipment combination and budget:
Automatic wafer feeder + 5-station automatic stretching hydraulic press + two-dimensional manipulator = $380,000

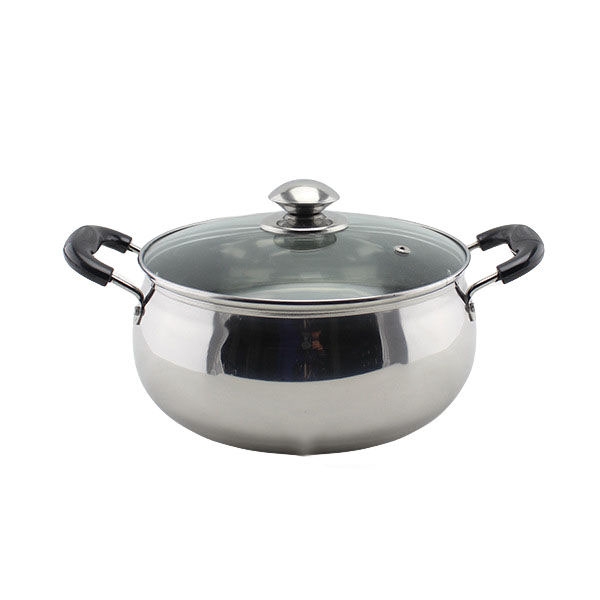

Spherical stainless steel pot drawing and stamping production line process and introduction

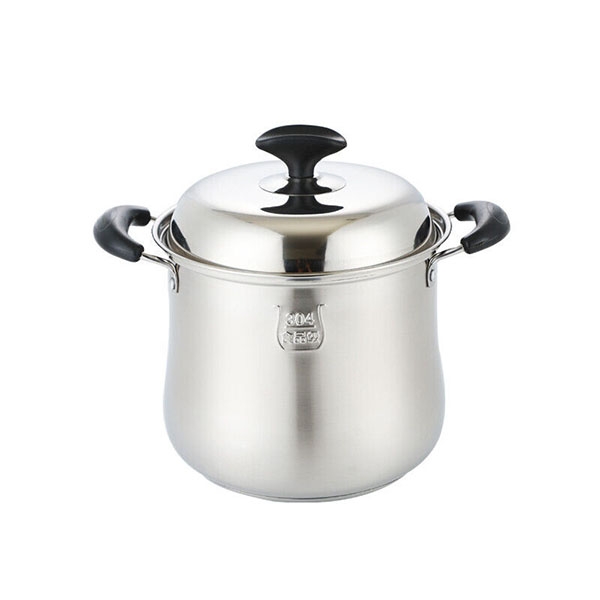

1: Suitable products for the production line: This fully automatic production line is suitable for automatic stretching of various types of stainless steel soup pots, milk pots, etc.
2: Trial material: stainless steel or aluminum alloy
3: Working cycle: 8 hours or 12 hours of continuous production recommended
4: Production accounting table:

Product diameter	Product height	Pot output		Pot lid output in 8 hours
100-200mm	50-100mm	10-8pieces/min	>2000pcs/8 hours	>3800pcs/8 hours
200-300mm	100-150mm	8-6pieces/min	>3800pcs/8 hours	>3800pcs/8 hours
300-400mm	150-200mm	6-5pieces/min	>2000pcs/8 hours	>3800pcs/8 hours
400-500mm	200-300mm	5-4pieces/min	>1500pcs/8 hours	>3800pcs/8 hours

5: Production process:
Wafer feeding--stretch forming--trimming-expanding--curling--watermark flushing--completed
6: Equipment combination and budget:
Automatic wafer feeder + automatic stretching machine + trimming hydraulic press + expanding hydraulic press + crimping machine + watermark + 4 robots = $98,000
