Rice cooker production line

Detail

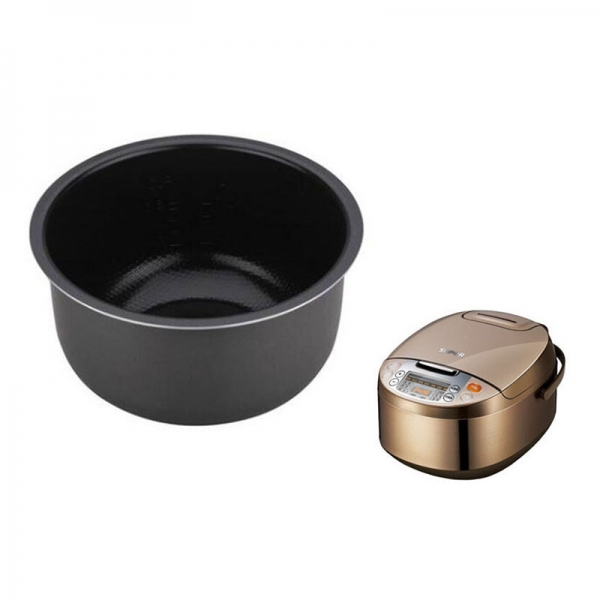

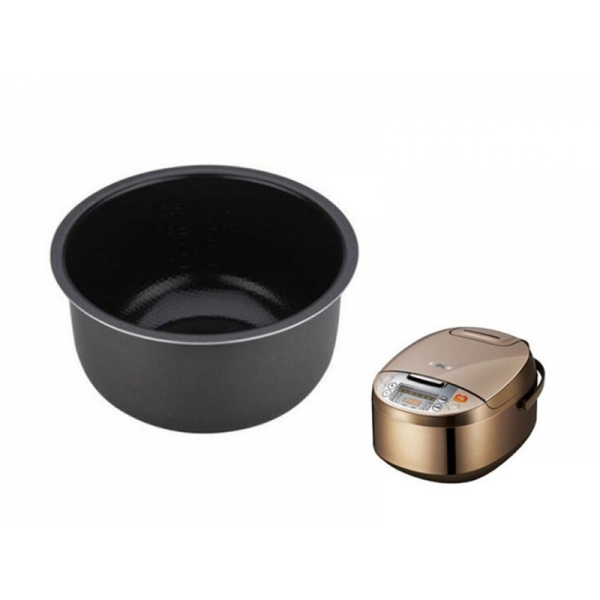

Rice cooker inner pot stretching and stamping production line process and introduction

1: Suitable products for the production line: This fully automatic production line is suitable for the automated production of various types of rice cooker inner pots, soup pots, woks, milk pots, frying pans and other pot bodies and lids.
2: Trial material: stainless steel or aluminum alloy
3: Working cycle: 8 hours or 12 hours of continuous production recommended
4: Production accounting table:

Product diameter	Product height	Pot output		Pot lid output in 8 hours
100-200mm	50-100mm	10-8pcs/min	>2000pcs/8 hours	>3800pcs/8 hours
200-300mm	100-150mm	8-6pcs/min	>3800pcs/8 hours	>3800pcs/8 hours
300-400mm	150-200mm	6-5pcs/min	>2000pcs/8 hours	>3800pcs/8 hours
400-500mm	200-300mm	5-4pcs/min	>1500pcs/8 hours	>3800pcs/8 hours

5: Production process:
Disk cutting--stretch forming--trimming--forming--punching--curling--watermarking--completed
6: Equipment combination and budget:
Automatic wafer feeder + stretching hydraulic press + trimming punch + flanging punch + punching punch + 4 robots = $180,000

Electric pressure cooker inner pot continuous stretching, stamping production line process and introduction

1: Suitable products for the production line: This fully automatic production line is suitable for automatic stretching, trimming, punching, watermarking and thread tapping of various types of electric pressure cookers and other pot bodies.
2: Trial material: stainless steel or aluminum alloy
3: Working cycle: 8 hours or 12 hours of continuous production recommended
4: Production accounting table:

Product diameter	Product height	Pot output		Pot lid output in 8 hours
100-200mm	50-100mm	10-8pcs/min	>2000pcs/8 hours	>3800pcs/8 hours
200-300mm	100-150mm	8-6pcs/min	>3800pcs/8 hours	>3800pcs/8 hours
300-400mm	150-200mm	6-5pcs/min	>2000pcs/8 hours	>3800pcs/8 hours
400-500mm	200-300mm	5-4pcs/min	>1500pcs/8 hours	>3800pcs/8 hours

5: Production process:
Wafer feeding--stretch forming--trimming--flaring-bottom punching--bottom forming--watermark--tapping--complete
6: Equipment combination and budget:
2 automatic wafer feeders + 2 automatic stretching machines + punch trimming + hydraulic press flanging + punch punching + punch forming + watermarking machine + automatic threading machine + 5 translation manipulators = $150,000

Air fryer stretching and stamping production line process and introduction

1: Suitable products for the production line: This fully automatic production line is suitable for automatic stretching and stamping of various types of air fryers, soup pots, milk pots, etc.
2: Trial material: stainless steel or aluminum alloy
3: Working cycle: 8 hours or 12 hours of continuous production recommended
4: Production accounting table:

Product diameter	Product height	Pot output		Pot lid output in 8 hours
100-200mm	50-100mm	10-8pcs/min	>2000pcs/8 hours	>3800pcs/8 hours
200-300mm	100-150mm	8-6pcs/min	>3800pcs/8 hours	>3800pcs/8 hours
300-400mm	150-200mm	6-5pcs/min	>2000pcs/8 hours	>3800pcs/8 hours
400-500mm	200-300mm	5-4pcs/min	>1500pcs/8 hours	>3800pcs/8 hours

5: Production process:
Square material feeding--stretch forming--bottom forming--trimming-edging--edging--punching--completed
6: Equipment combination and budget:
Automatic feeding machine + automatic stretching machine + forming hydraulic press + trimming punch + flanging punch + edge pressing punch + punching machine + 7 robots = $130,000

If you have any questions or comments, you can leave us a message and we will reply to you as soon as possible
